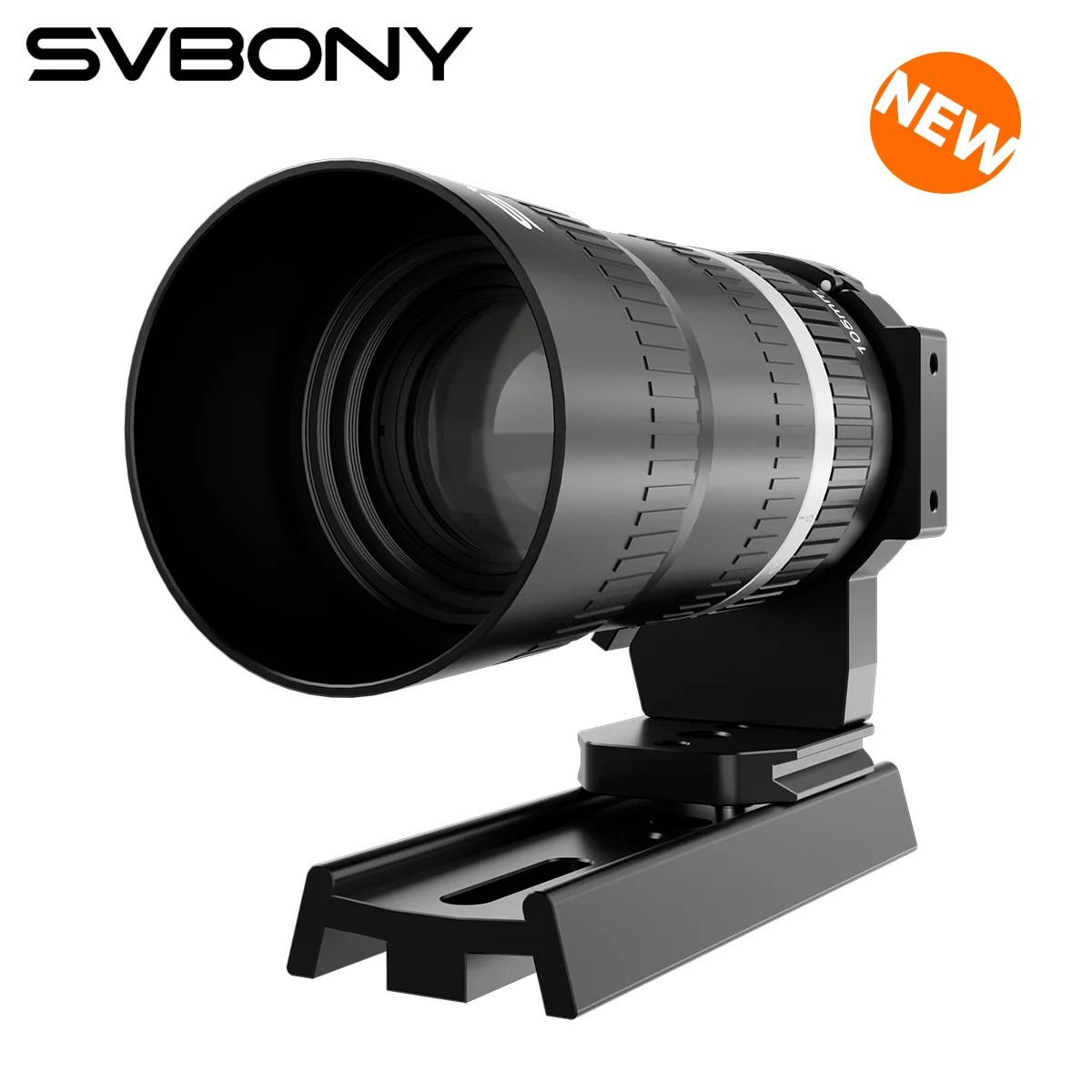

Svbony SV535 Astronomical Telescope 105mm f/2.8 APO Refractor Astro Camera Prime Lens for M42/E-Mount for Deep Space Photography

Description

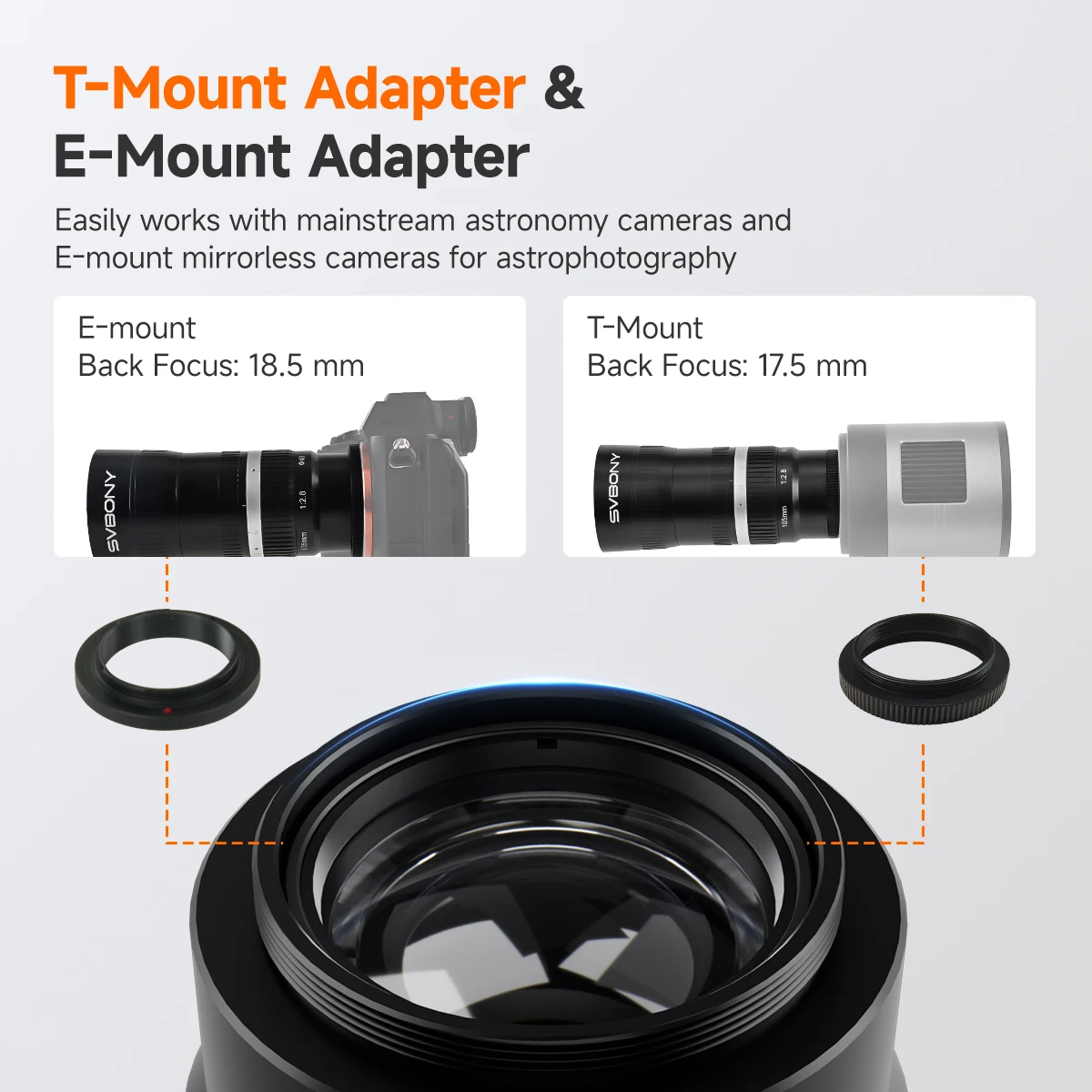

【Important Compatibility Notice】Please note: This product is not compatible with commonly available camera T-mount adapters.

For use with an Astronomical camera – select the M42 extension tube; For use with a Mirrorless camera – the M42 extension tube is not needed, you need to remove the M42 extension tube and select the corresponding camera mount.

If you require a Sony E/Nikon Z/Canon RF interface adapter after placing your order, please leave a note or contact us. We will include one free adapter with your order.

Author: BBROASTRO

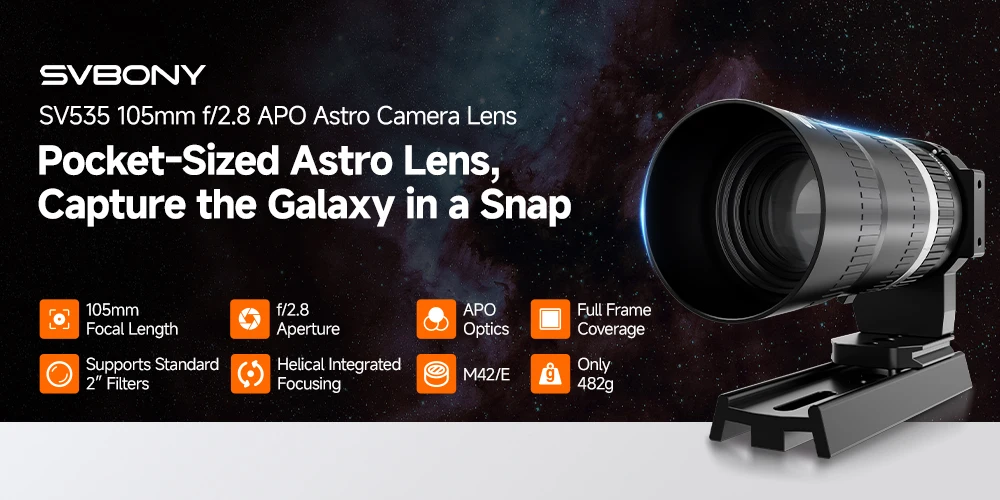

SV535 105mm f/2.8 APO Astro Camera Lens

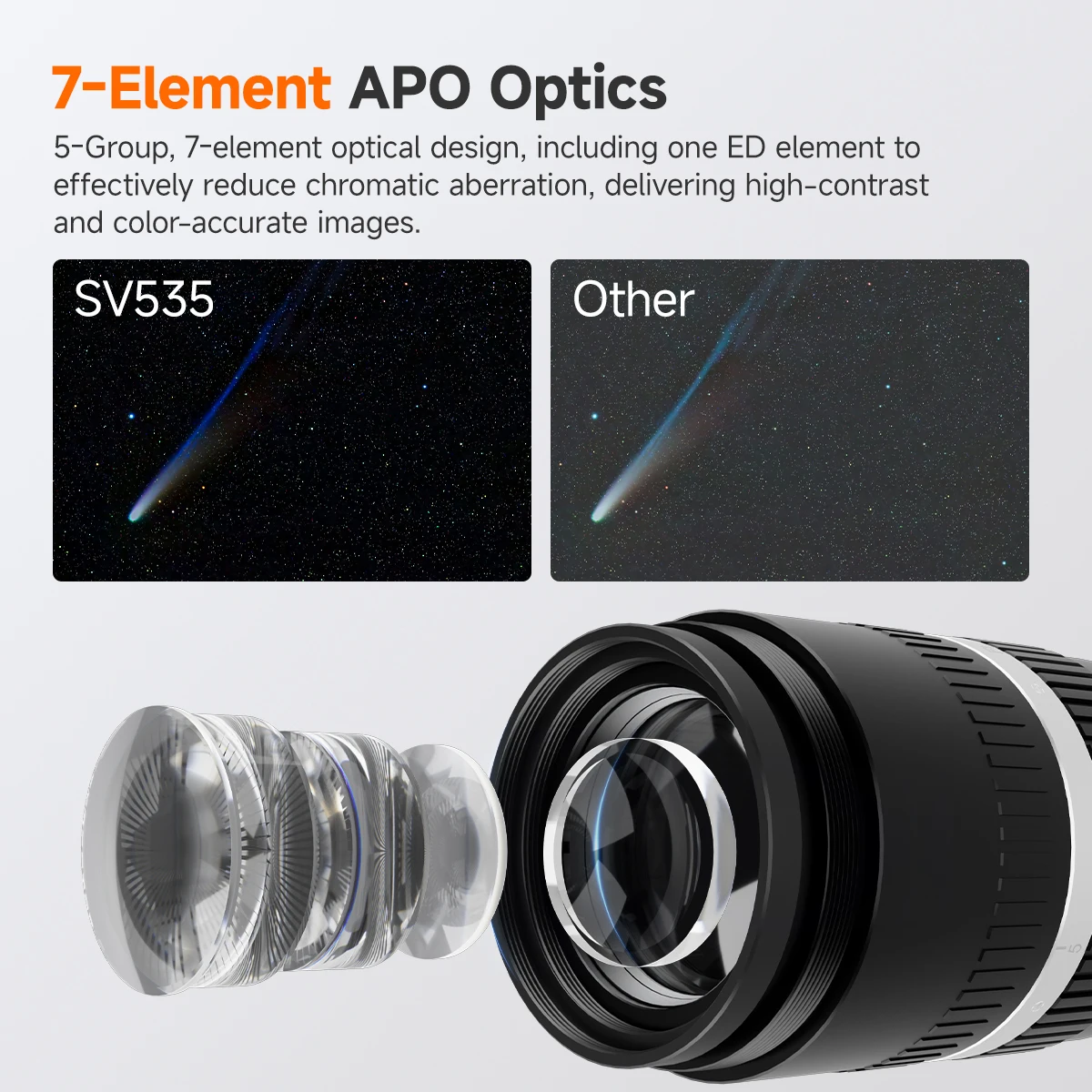

7-Element APO Optics

5-group, 7-element optical design, including one ED element to effectively reduce chromatic aberration, delivering high-contrast and color-accurate images.

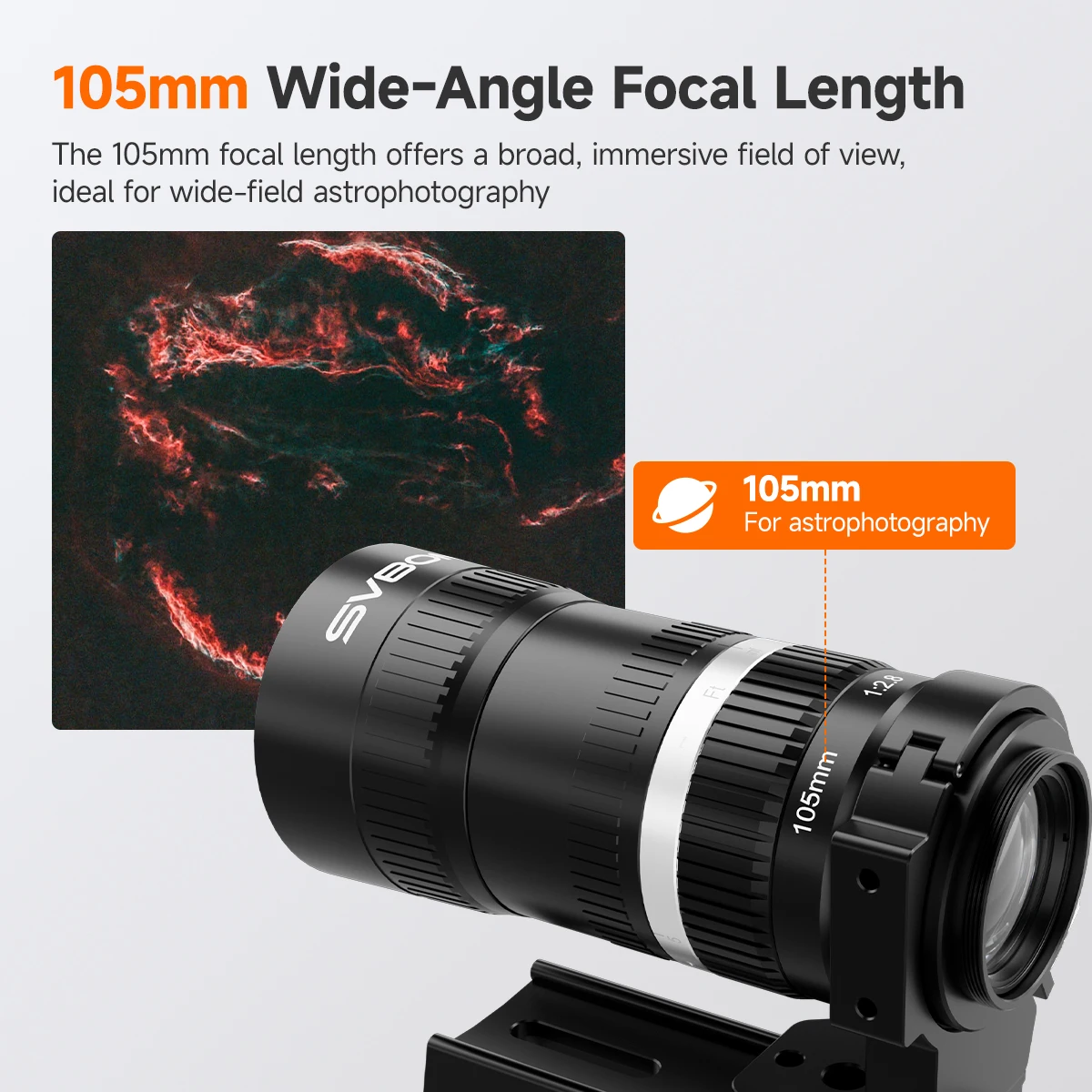

105mm Wide-Angle Focal Length

The 105mm focal length offers a broad, immersive field of view, ideal for wide-field astrophotography.

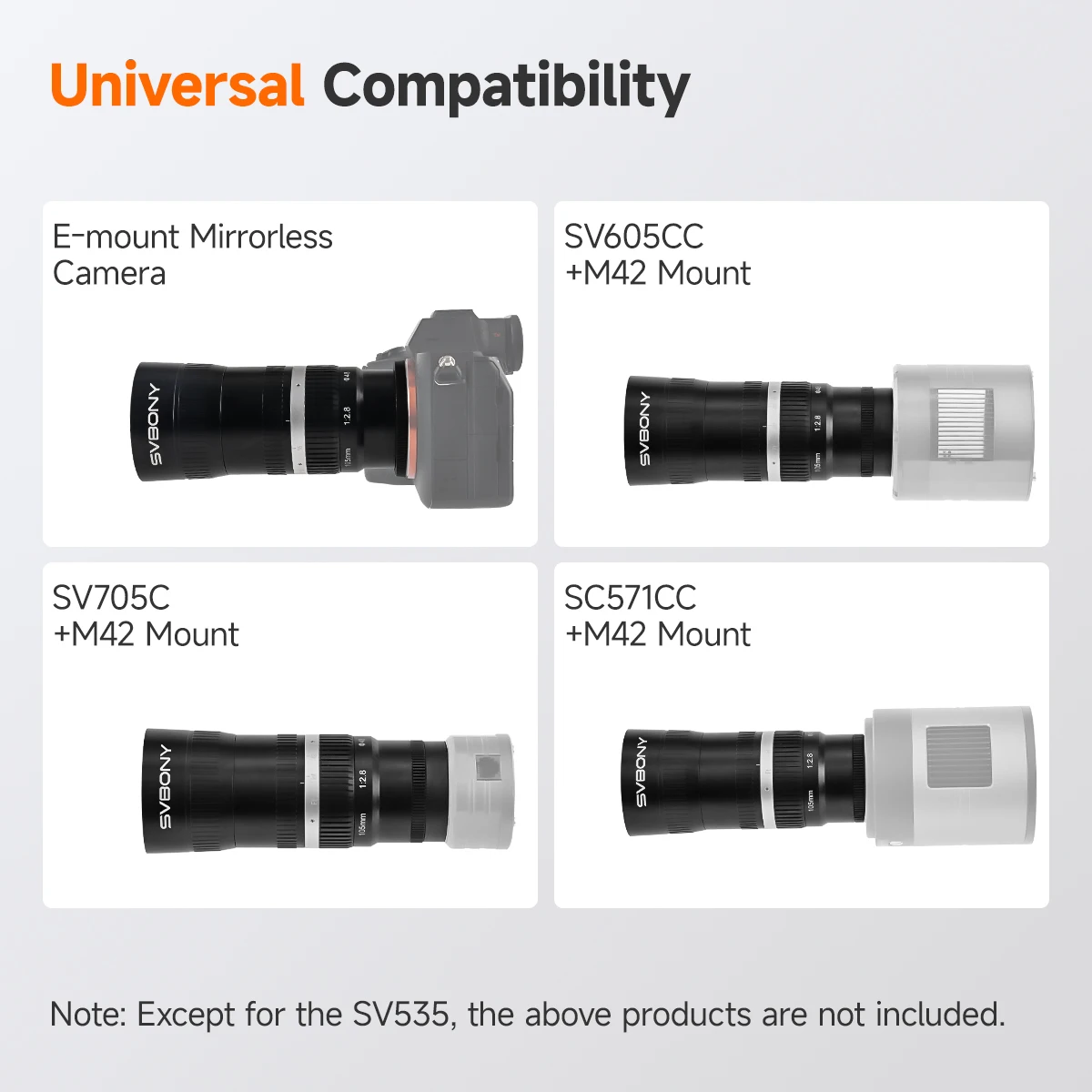

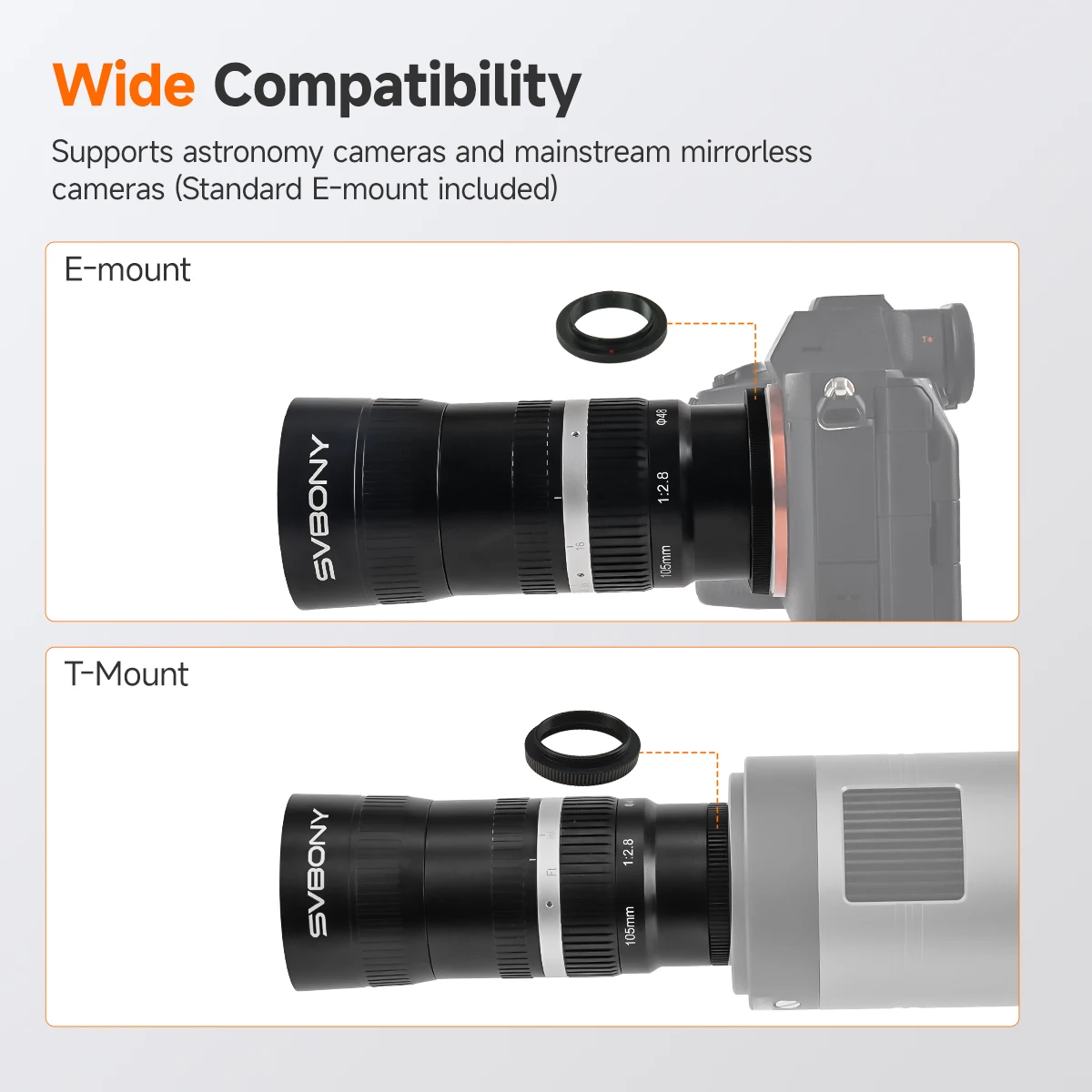

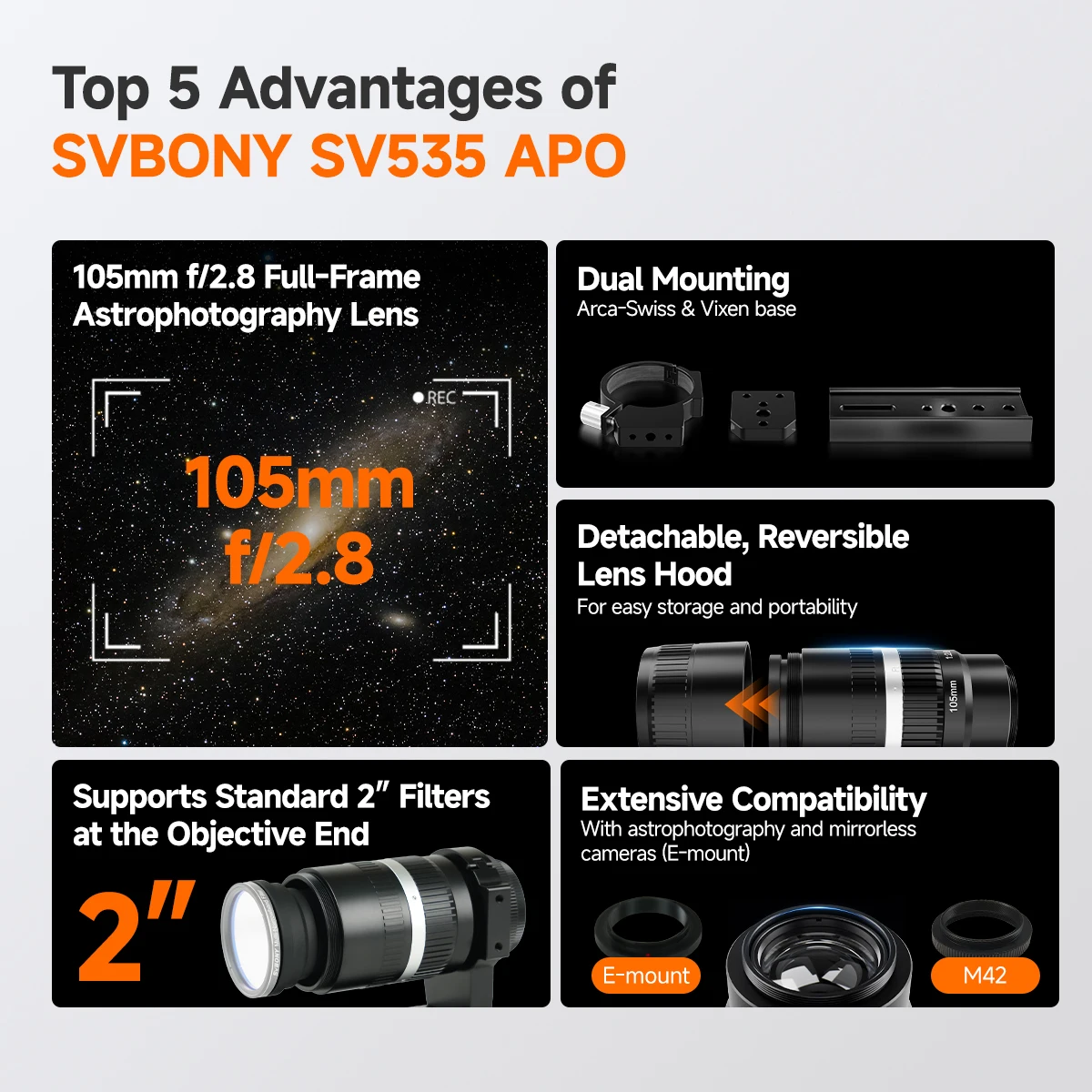

Wide Compatibility

Supports astronomy cameras and mainstream mirrorless cameras (Standard E-mount included).

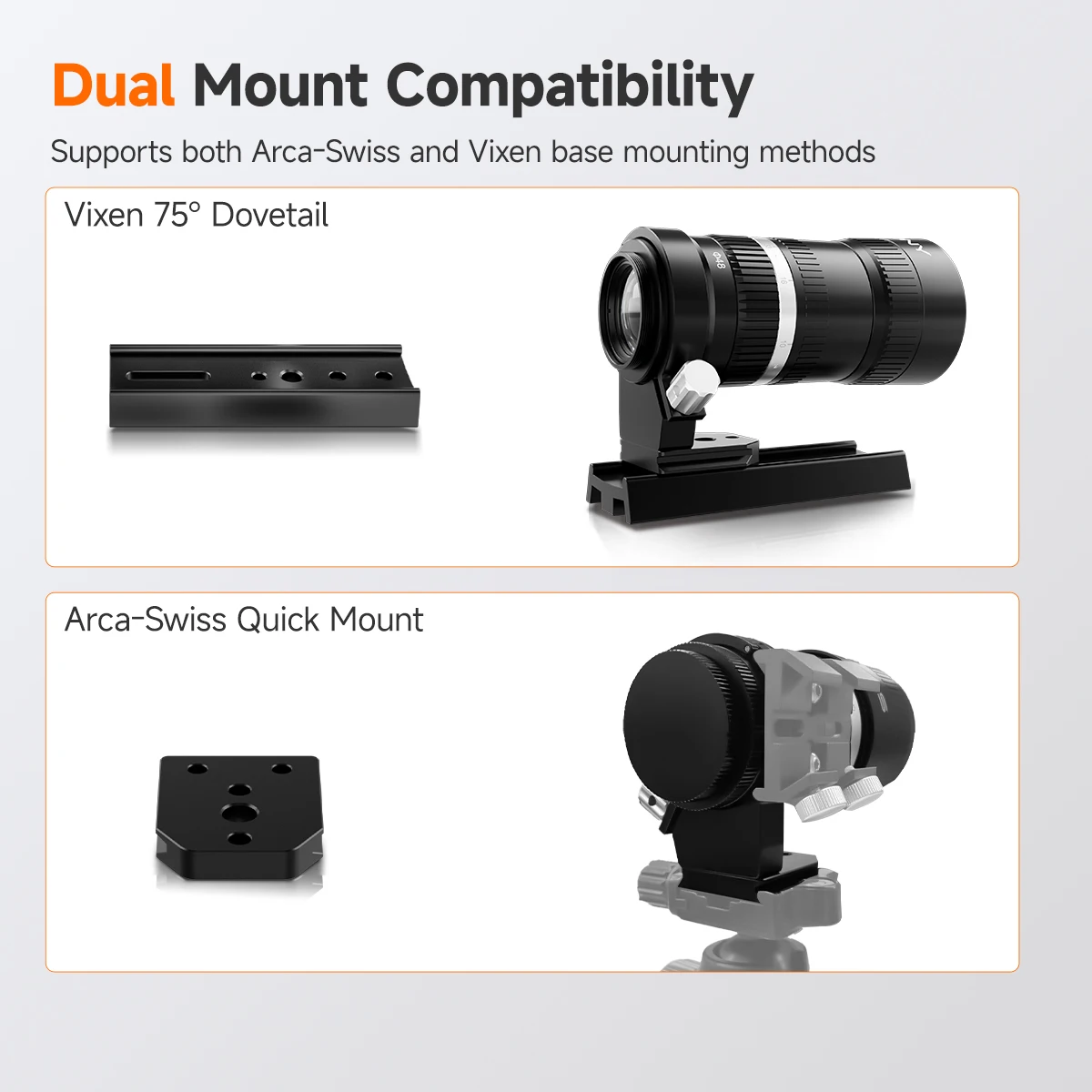

Dual Mount Compatibility

Supports both Arca-Swiss and Vixen base mounting methods.

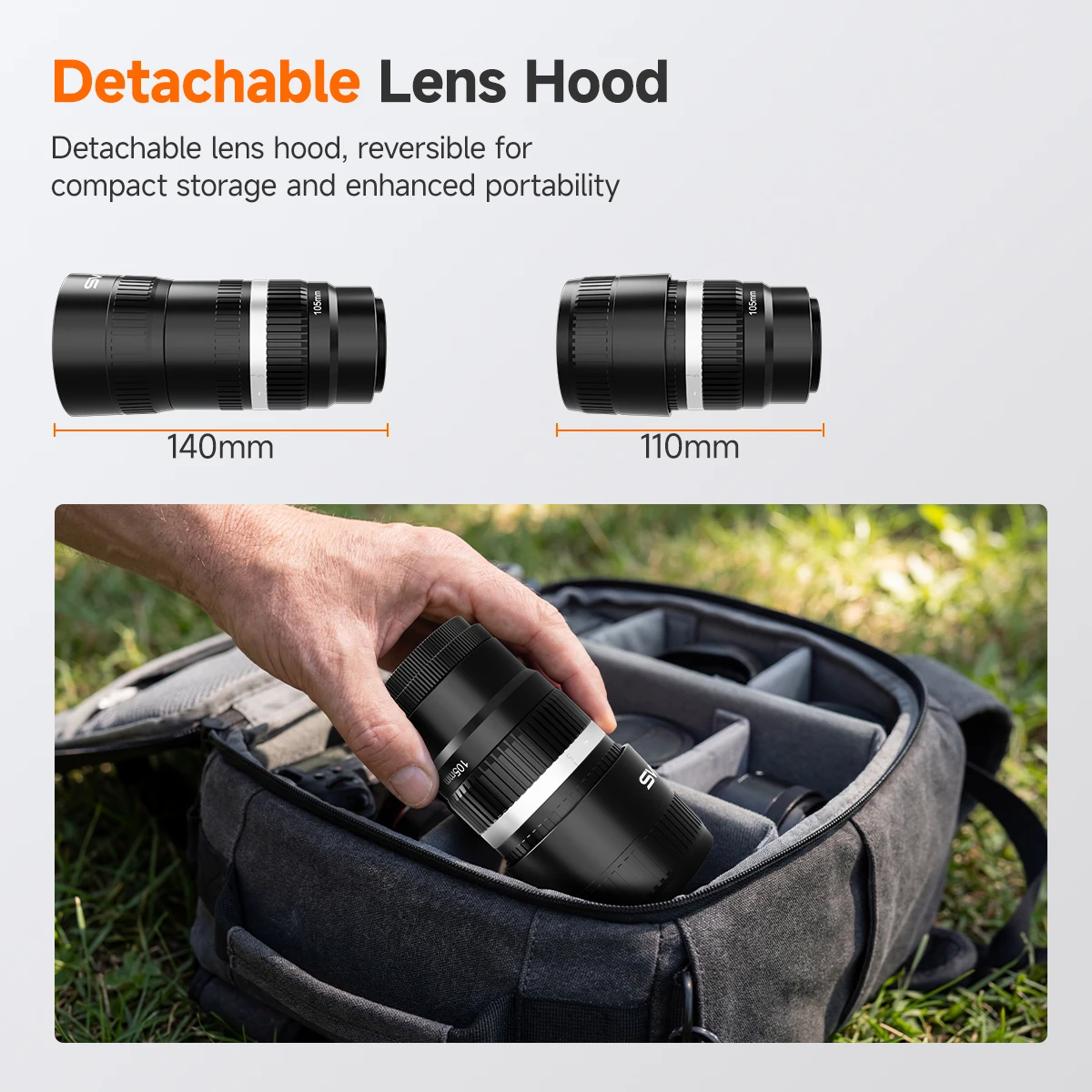

Detachable Lens Hood

Detachable lens hood, reversible for compact storage and enhanced portability.

Classic M42 Mount

M42 thread interface, works with 70–80% of mainstream cameras and lenses.

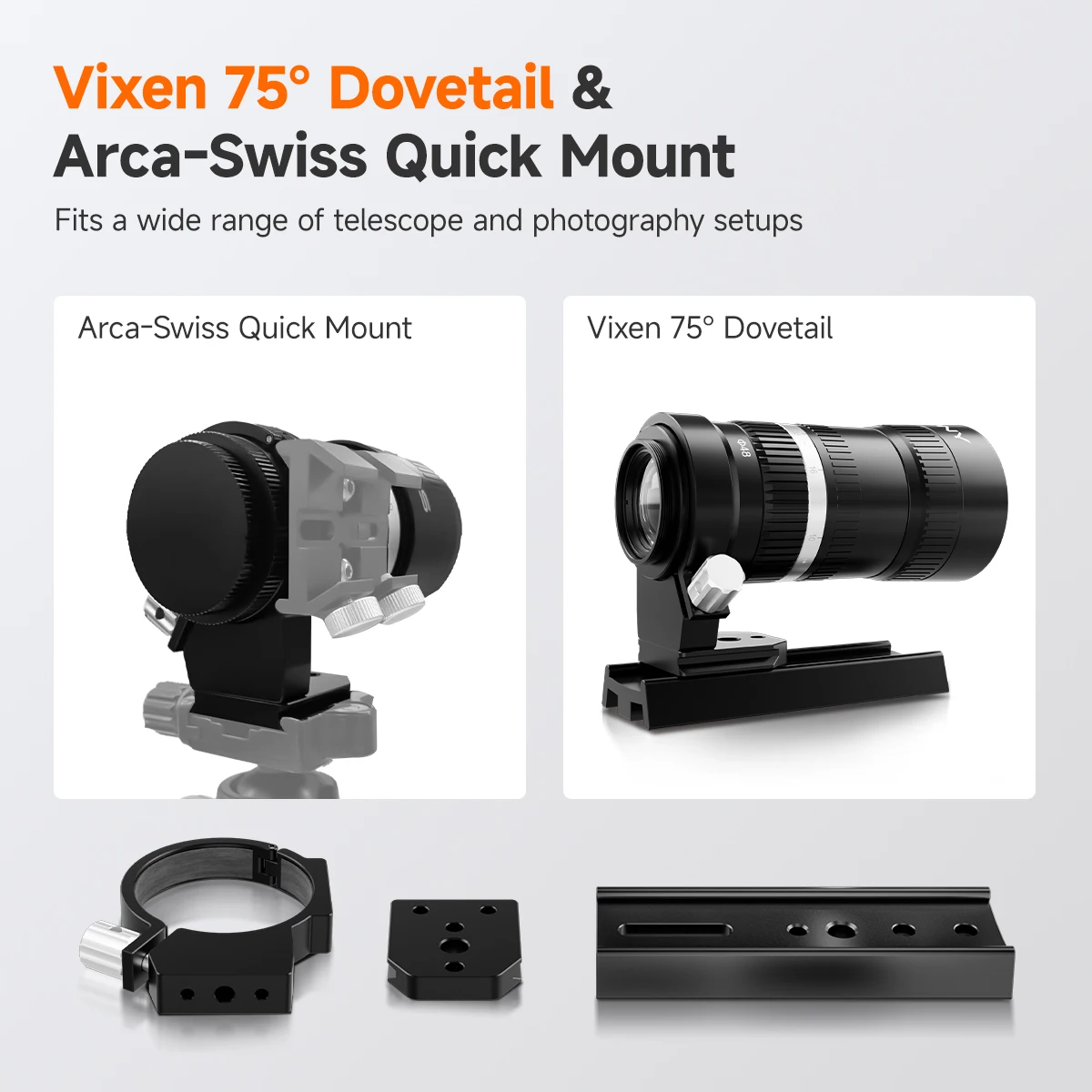

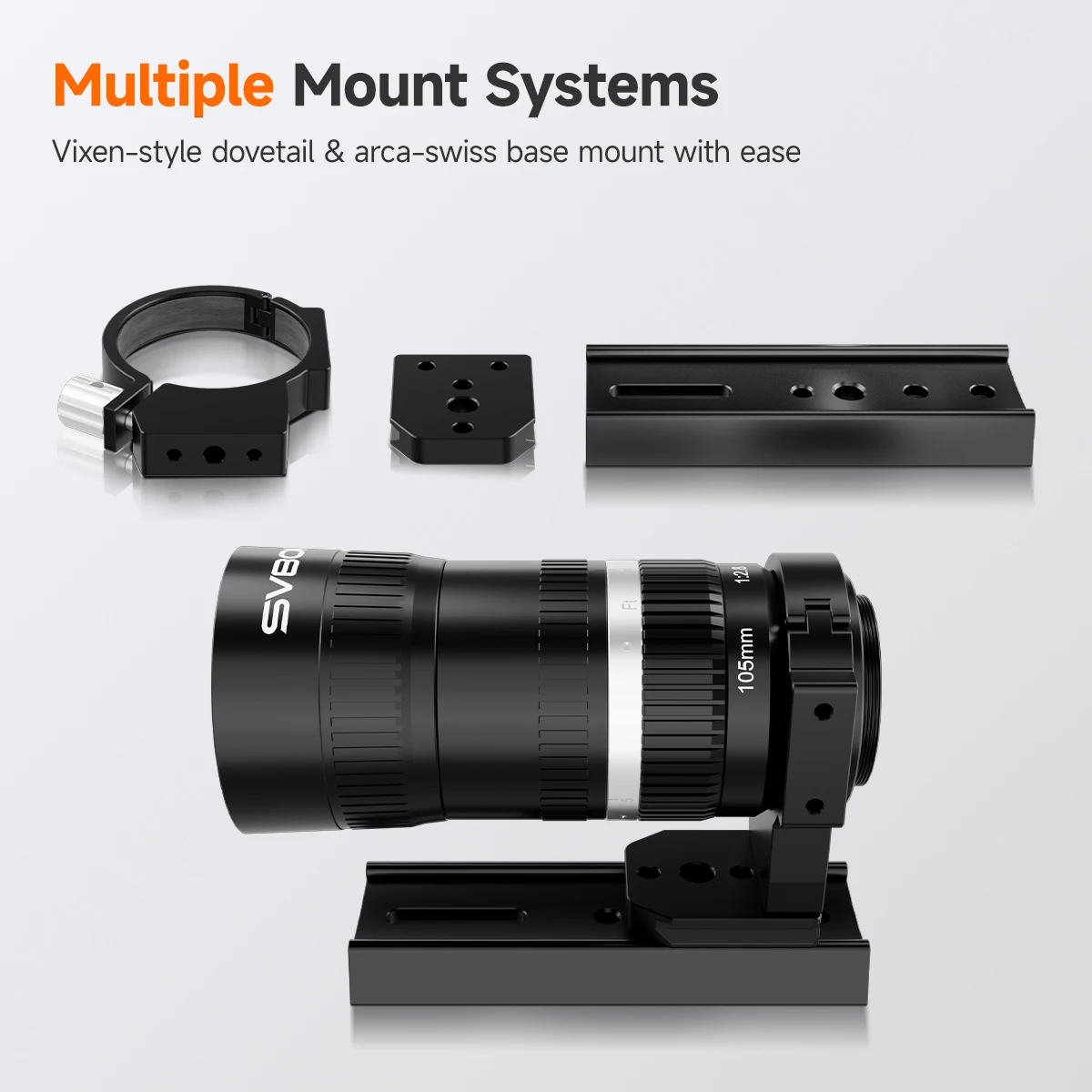

Fits Multiple Systems with Ease

Supports both Vixen-style dovetail and Arca-Swiss mounts for versatile installation and smooth setup.

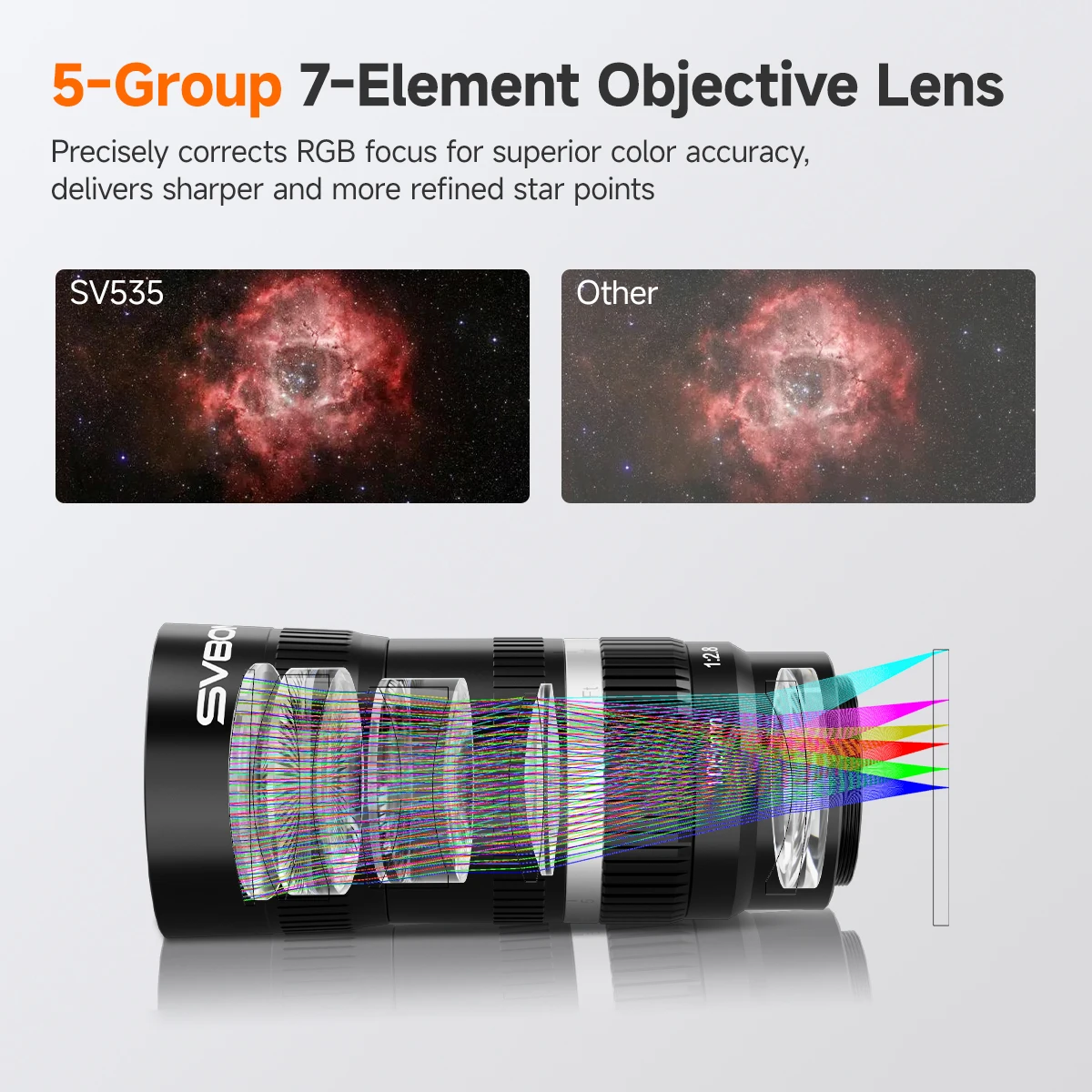

5-Group 7-Element Objective Lens

Precisely corrects RGB focus for superior color accuracy, delivers sharper and more refined star points.

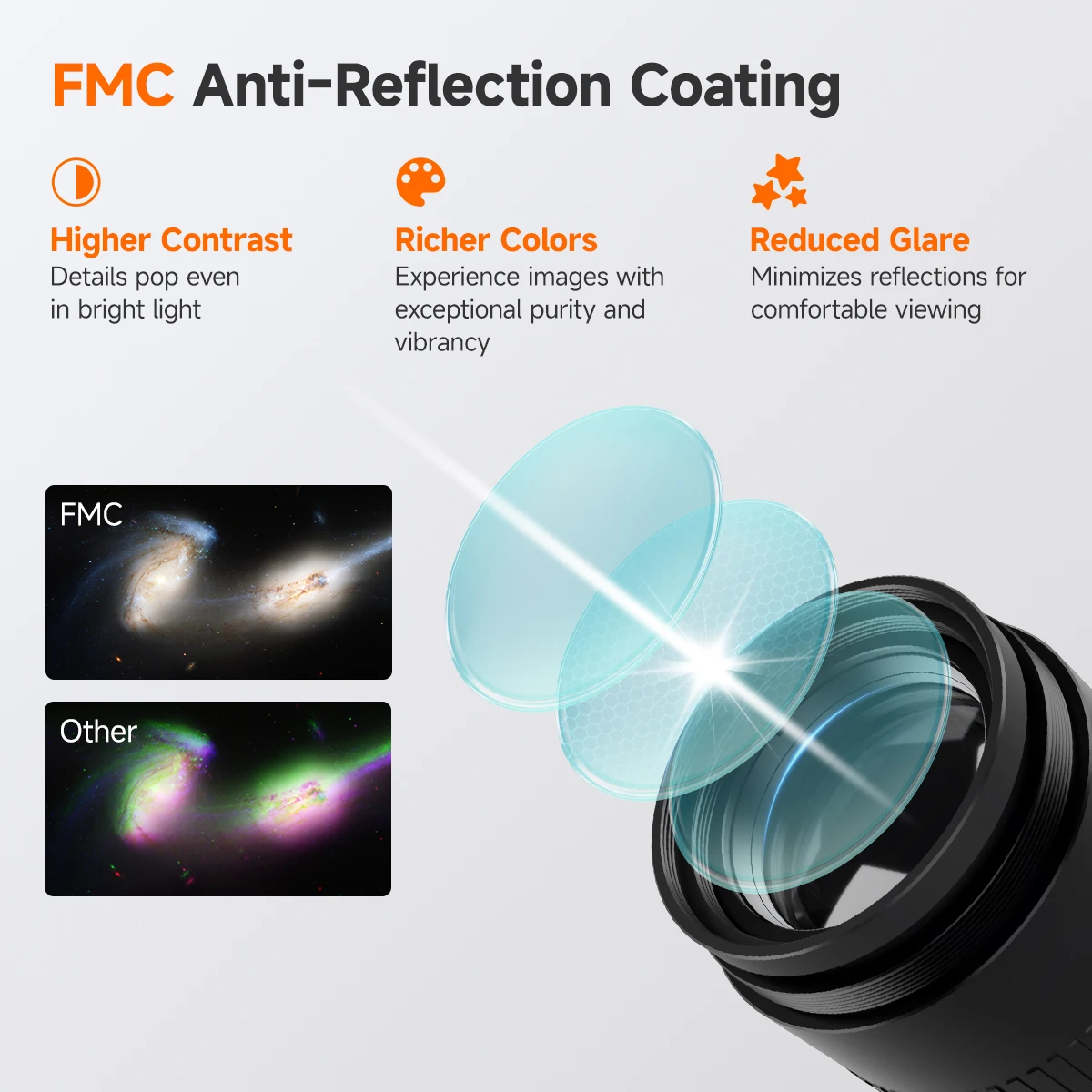

FMC Anti-Reflection Coating

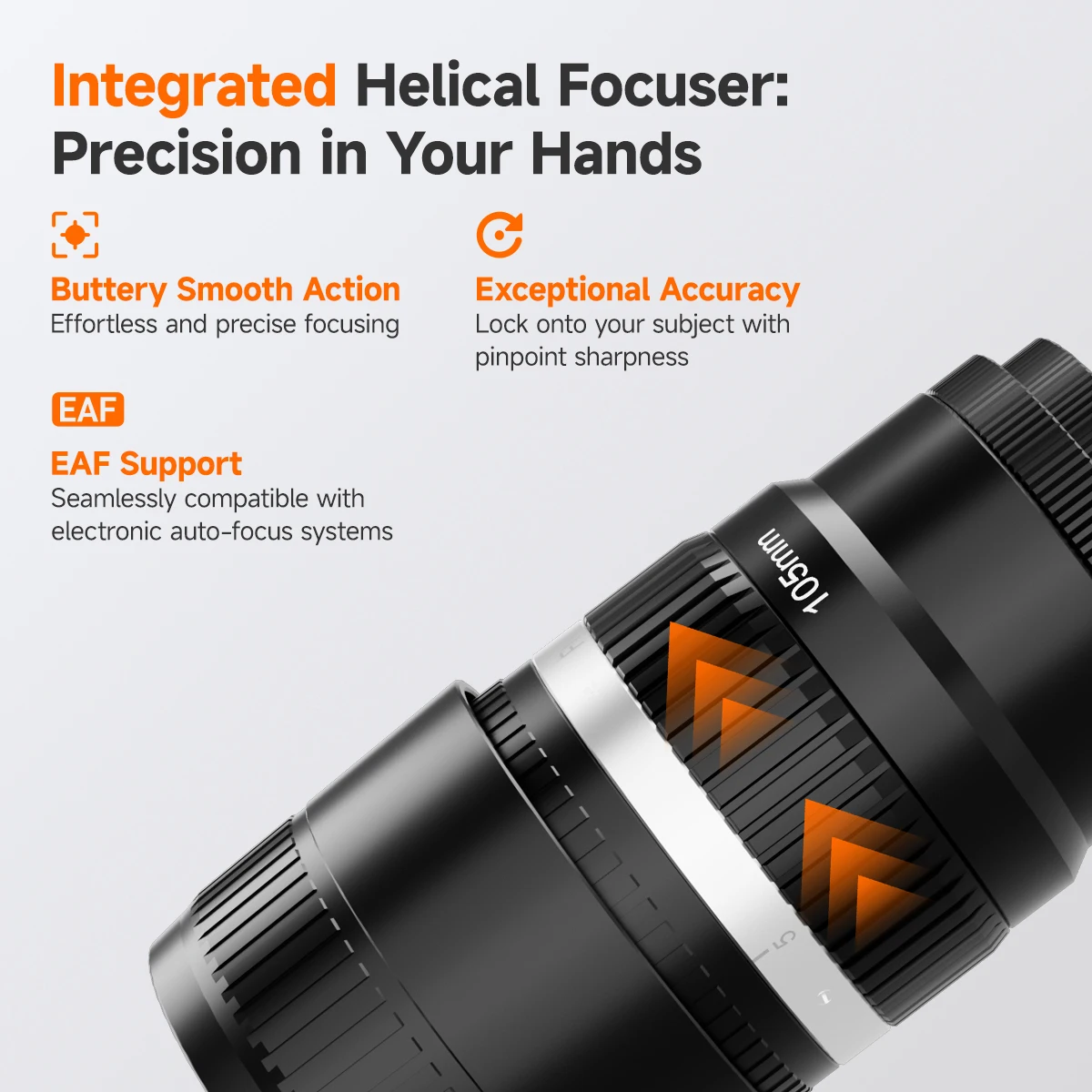

Integrated Helical Focuser

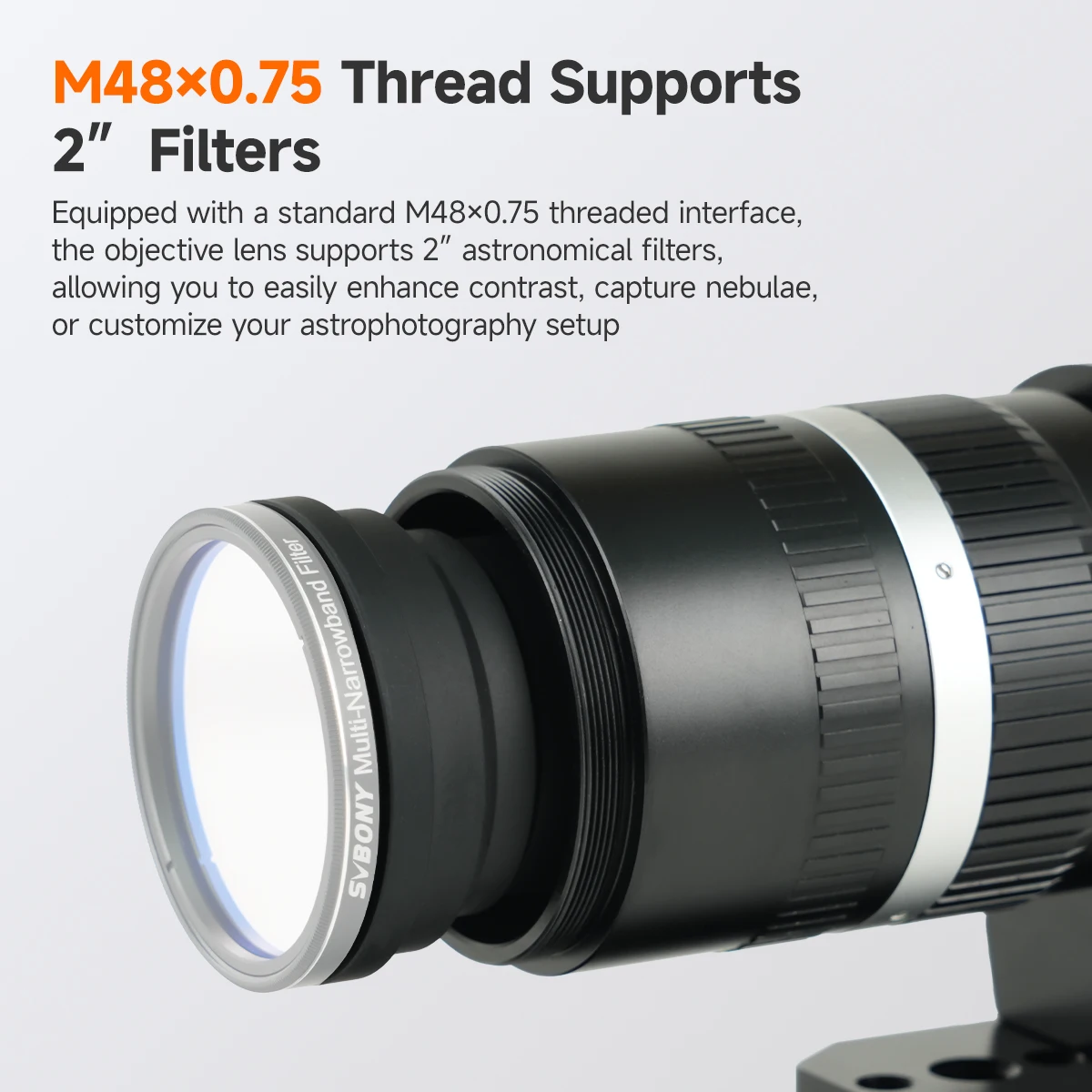

M48×0.75 Thread Supports 2″ Filters

Equipped with a standard M48×0.75 threaded interface, the objective lens supports 2″ astronomical filters, allowing you to easily enhance contrast, capture nebulae, or customize your astrophotography setup.

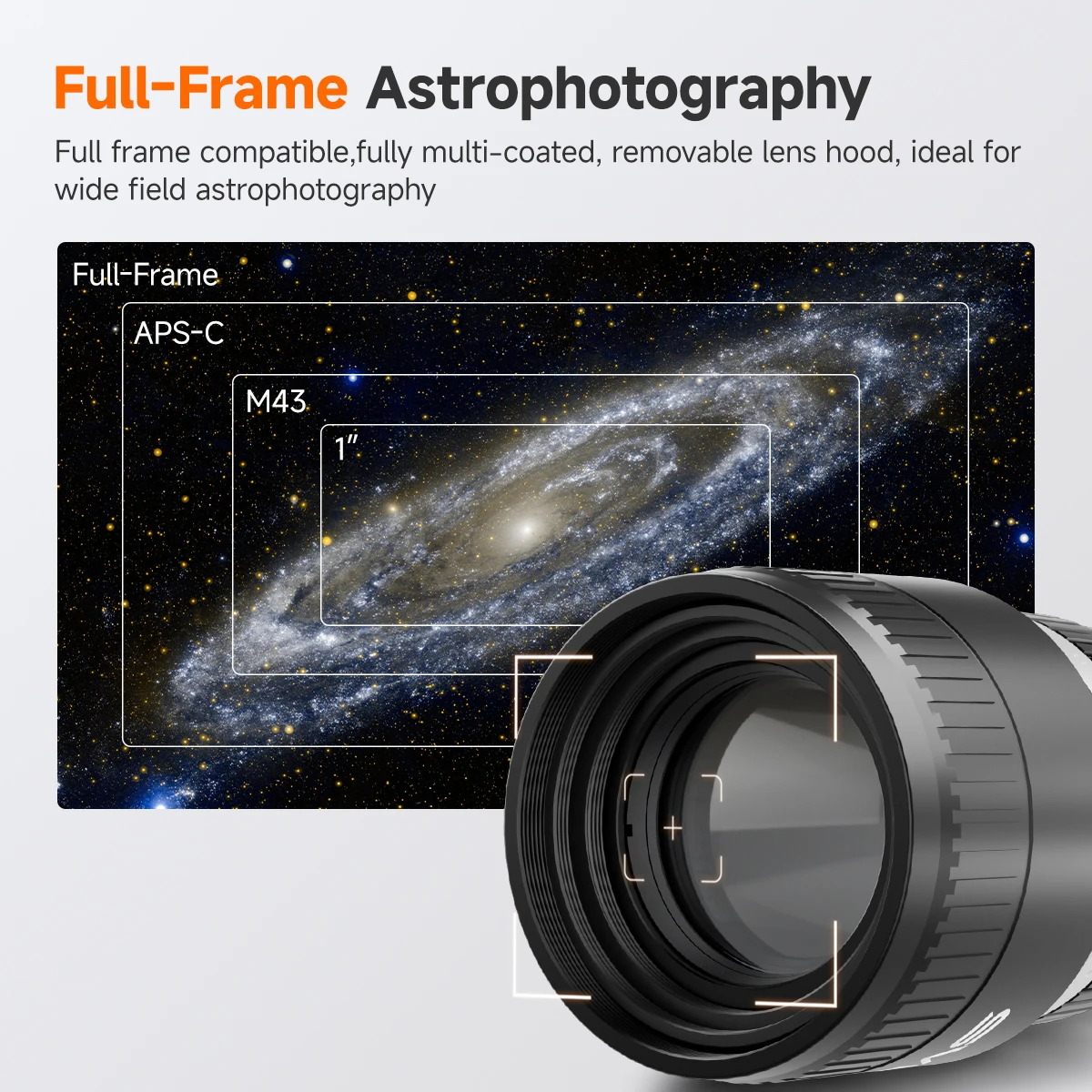

Full-Frame Astrophotography

Full frame compatible,fully multi-coated, removable lens hood, ideal for wide field astrophotography.

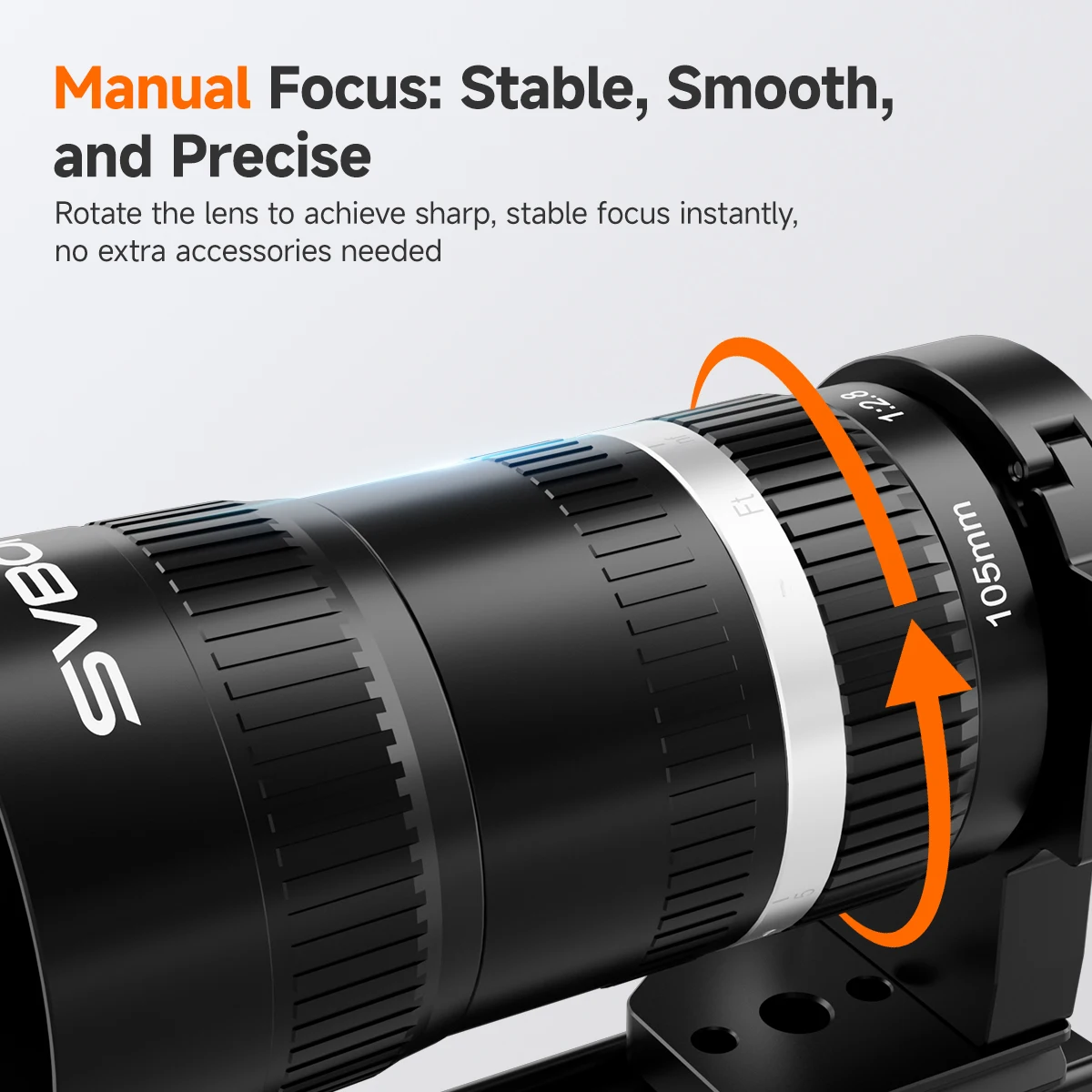

Manual Focus: Stable, Smooth, and Precise

Rotate the lens to achieve sharp, smooth and stable focus instantly, no extra accessories needed.

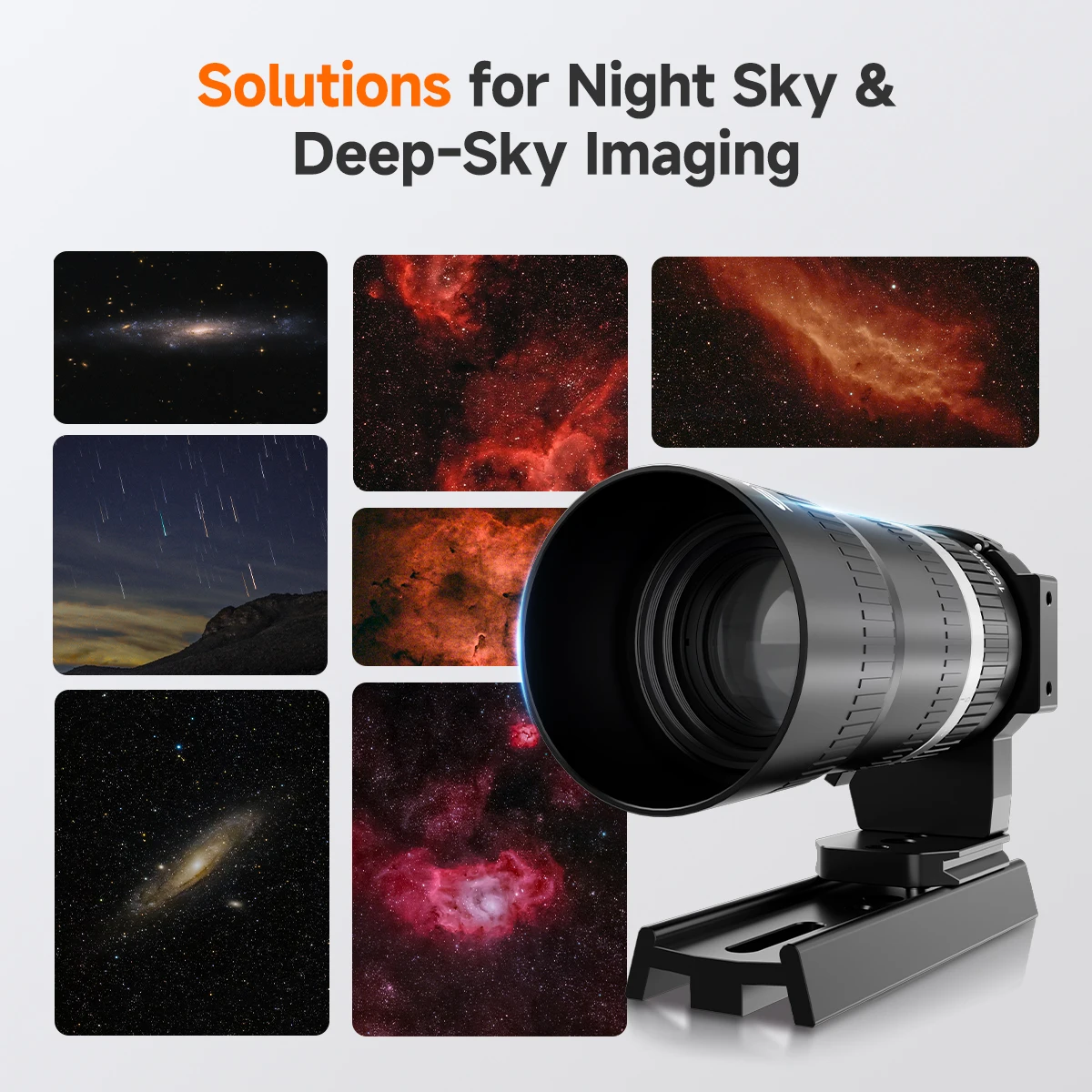

Solutions for Night Sky & Deep-Sky Imaging

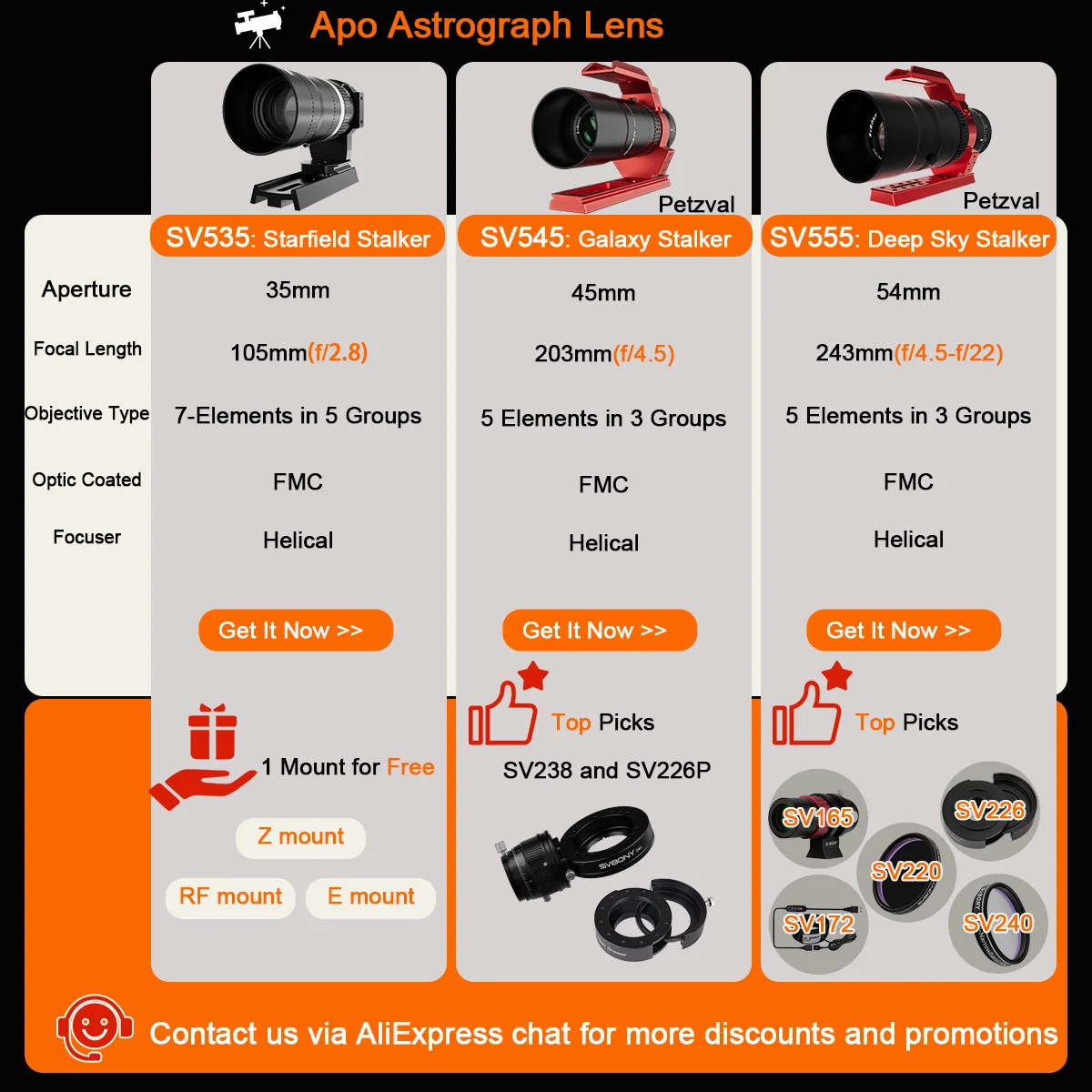

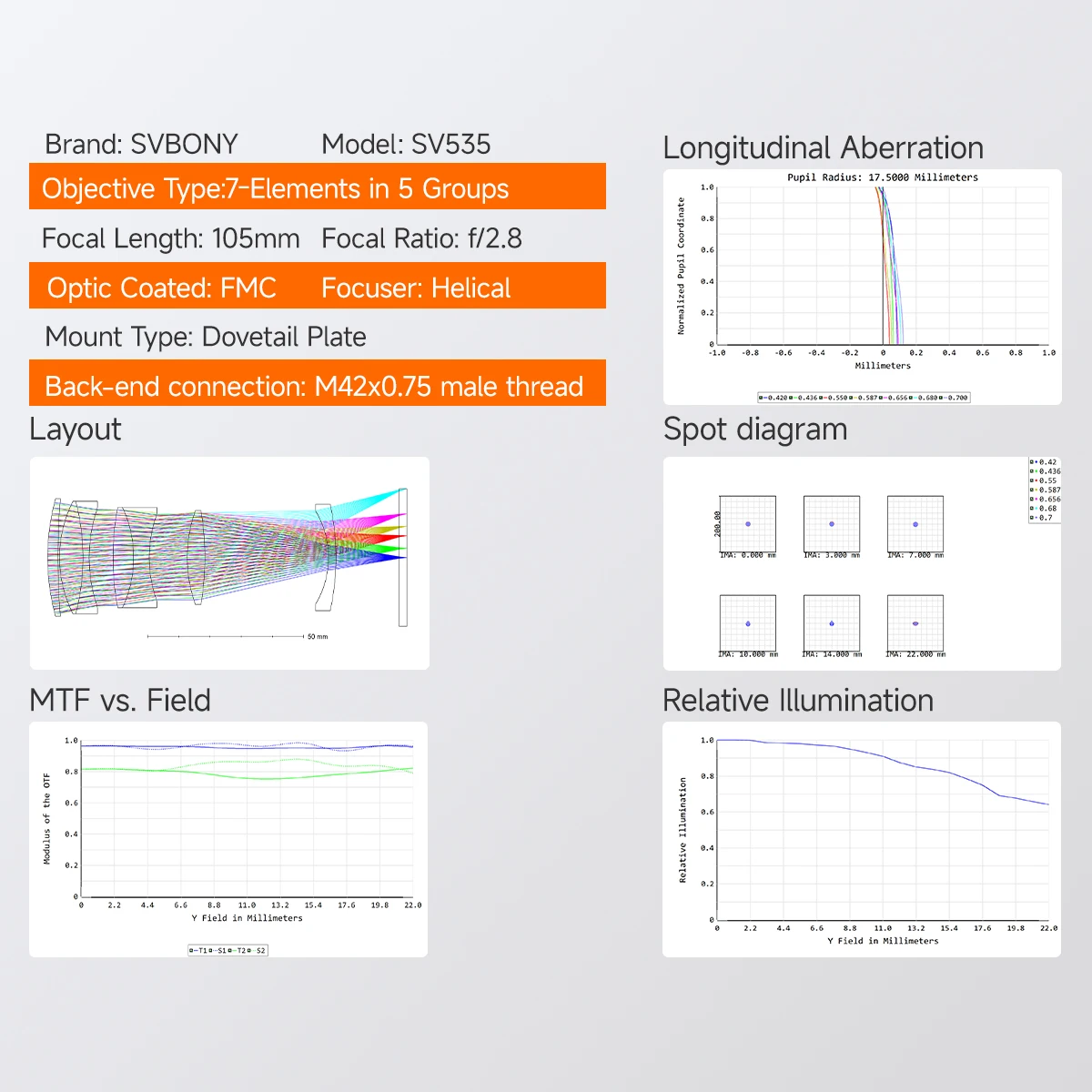

Brand: SVBONY

Model: SV535

Objective Type: 7-Elements in 5 Groups

Focal Length: 105mm

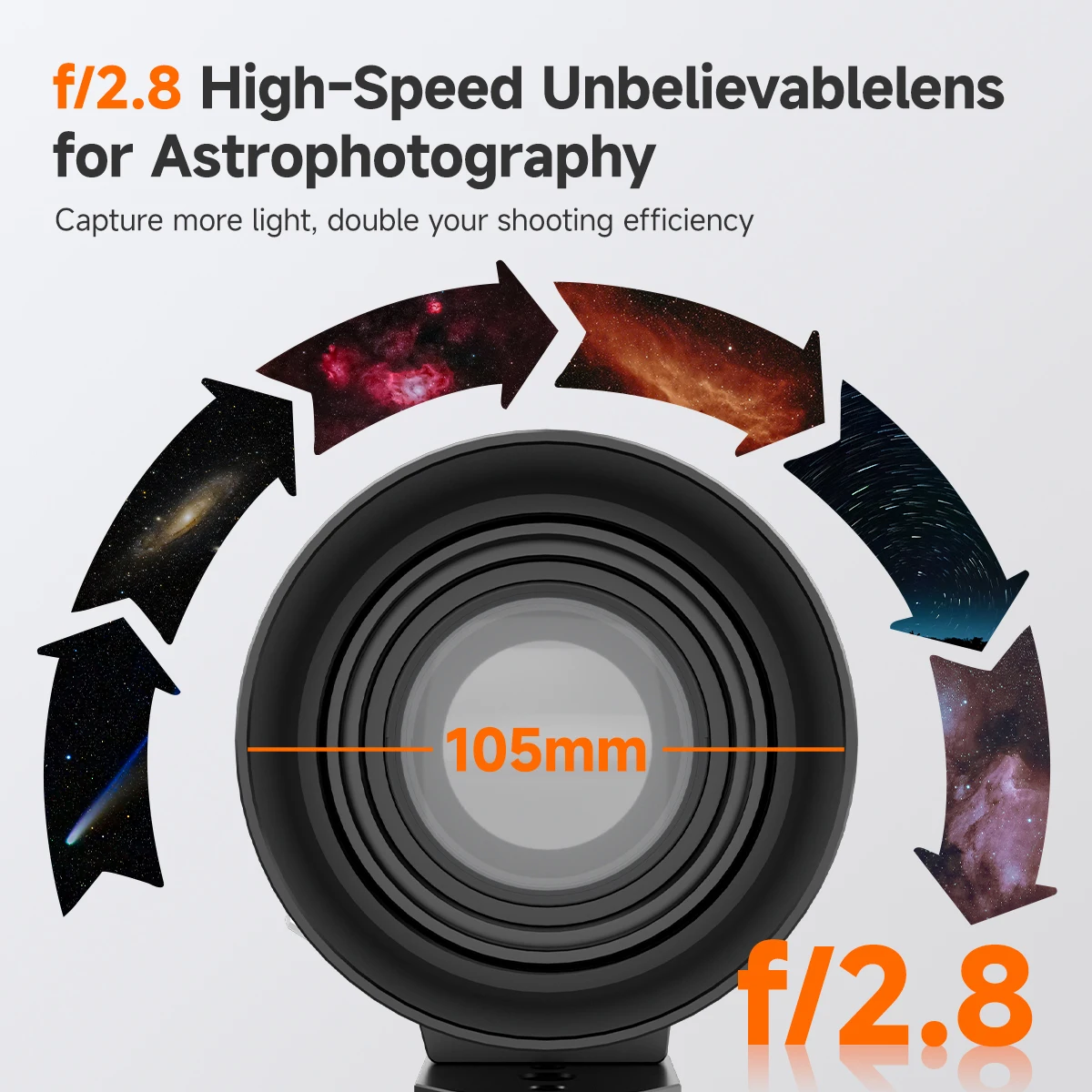

Focal Ratio: f/2.8

Optic Coated: FMC

Focuser: Helical

Mount Type: Dovetail Plate

Back-end connection: M42x0.75 male thread

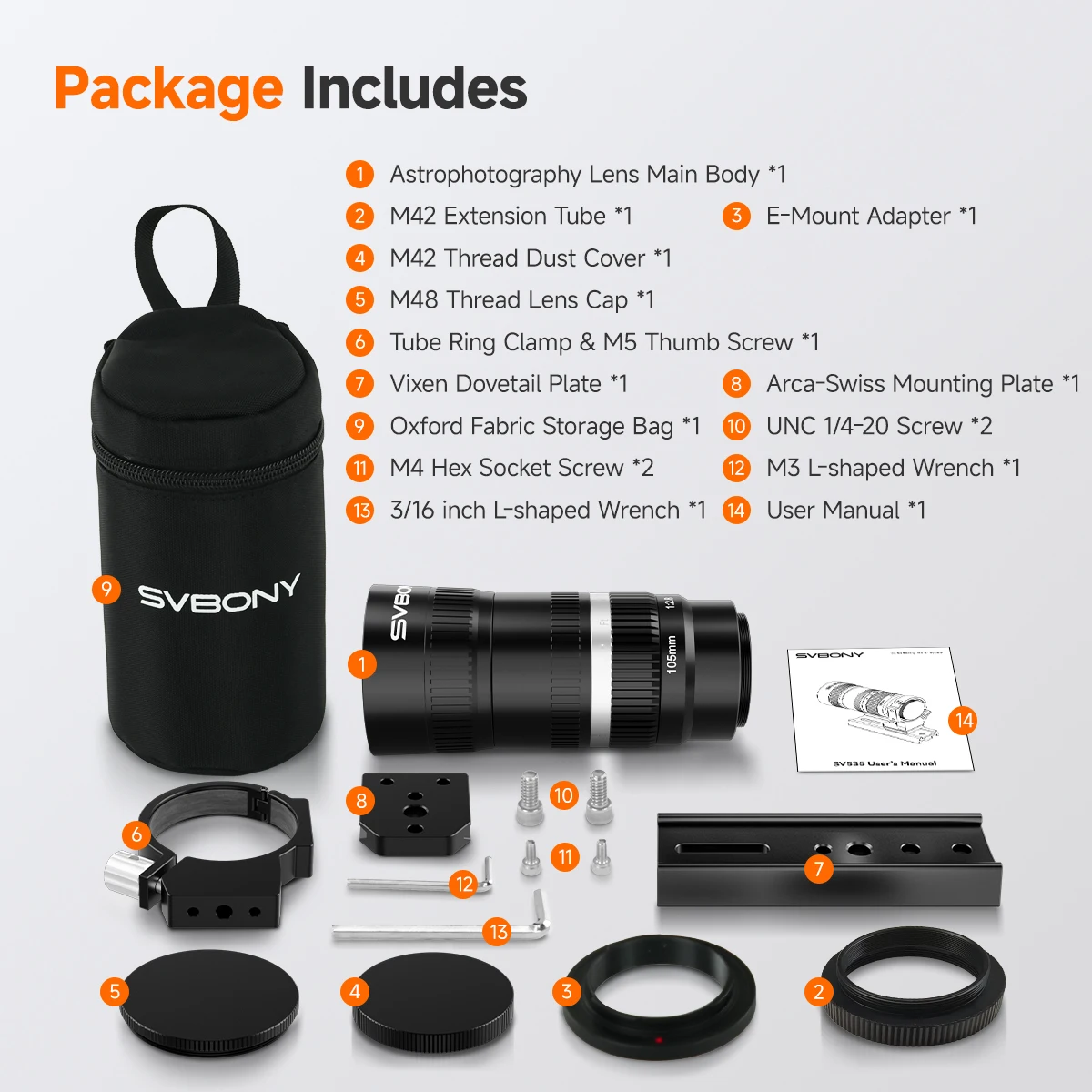

Package Includes:

Astrophotography Lens Main Body *1

M42 Extension Tube *1

E-Mount Adapter *1

M42 Thread Dust Cover *1

M48 Thread Lens Cap *1

Tube Ring Clamp & M5 Thumb Screw *1

Vixen Dovetail Plate *1

Arca-Swiss Mounting Plate *1

Oxford Fabric Storage Bag *1

UNC 1/4-20 Screw *2

M4 Hex Socket Screw *2

M3 L-shaped Wrench *1

3/16 inch L-shaped Wrench *1

User Manual*1

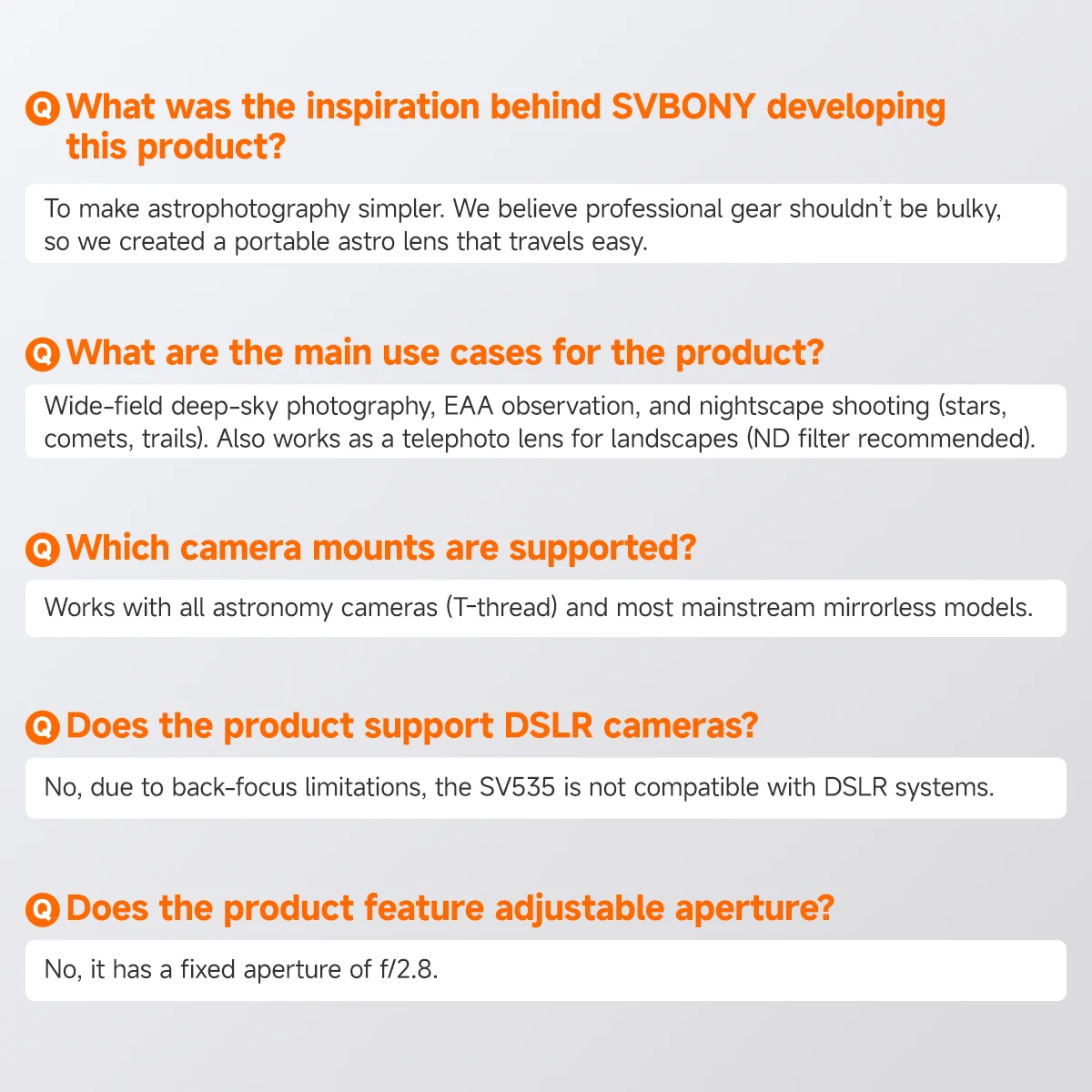

Q1: What was the inspiration behind SVBONY developing this product?

A1: To make astrophotography simpler. We believe professional gear shouldn’t be bulky, so we created a portable astro lens that travels easy.

Q2: What are the main use cases for the product?

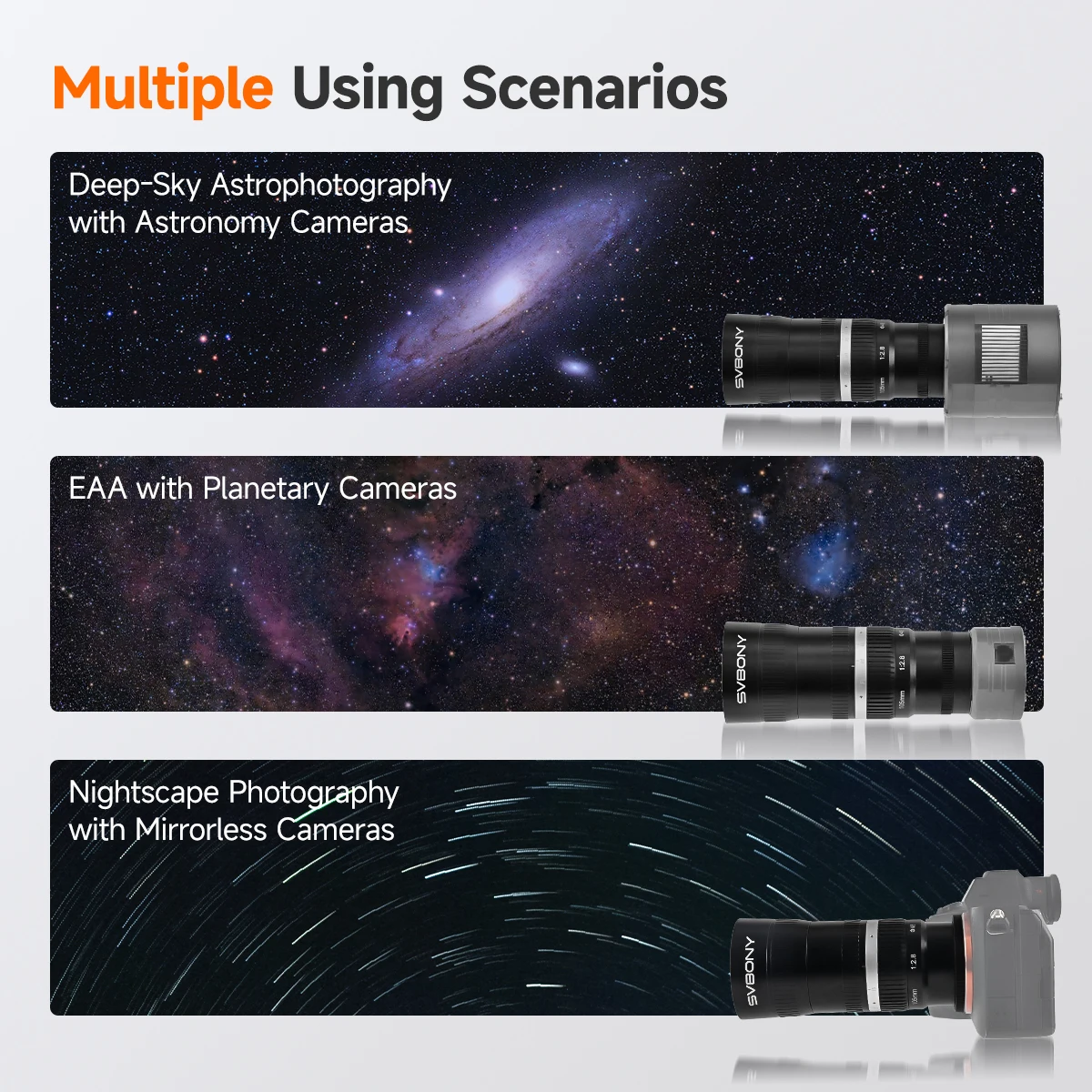

A2: Wide-field deep-sky photography, EAA observation, and nightscape shooting (stars, comets, trails). Also works as a telephoto lens for landscapes (ND filter recommended).

Q3: Which camera mounts are supported?

A3: Works with all astronomy cameras (T-thread) and most mainstream mirrorless models.

Q4: Does the product support DSLR cameras?

A4: No, due to back-focus limitations, the SV535 is not compatible with DSLR systems.

Q5: Does the product feature adjustable aperture?

A5: No, it has a fixed aperture of f/2.8.
